Drawer

A side panel built from rows. It is the most flexible component in the library: a read-only dossier, a form, a live HUD readout, or all three in one panel.

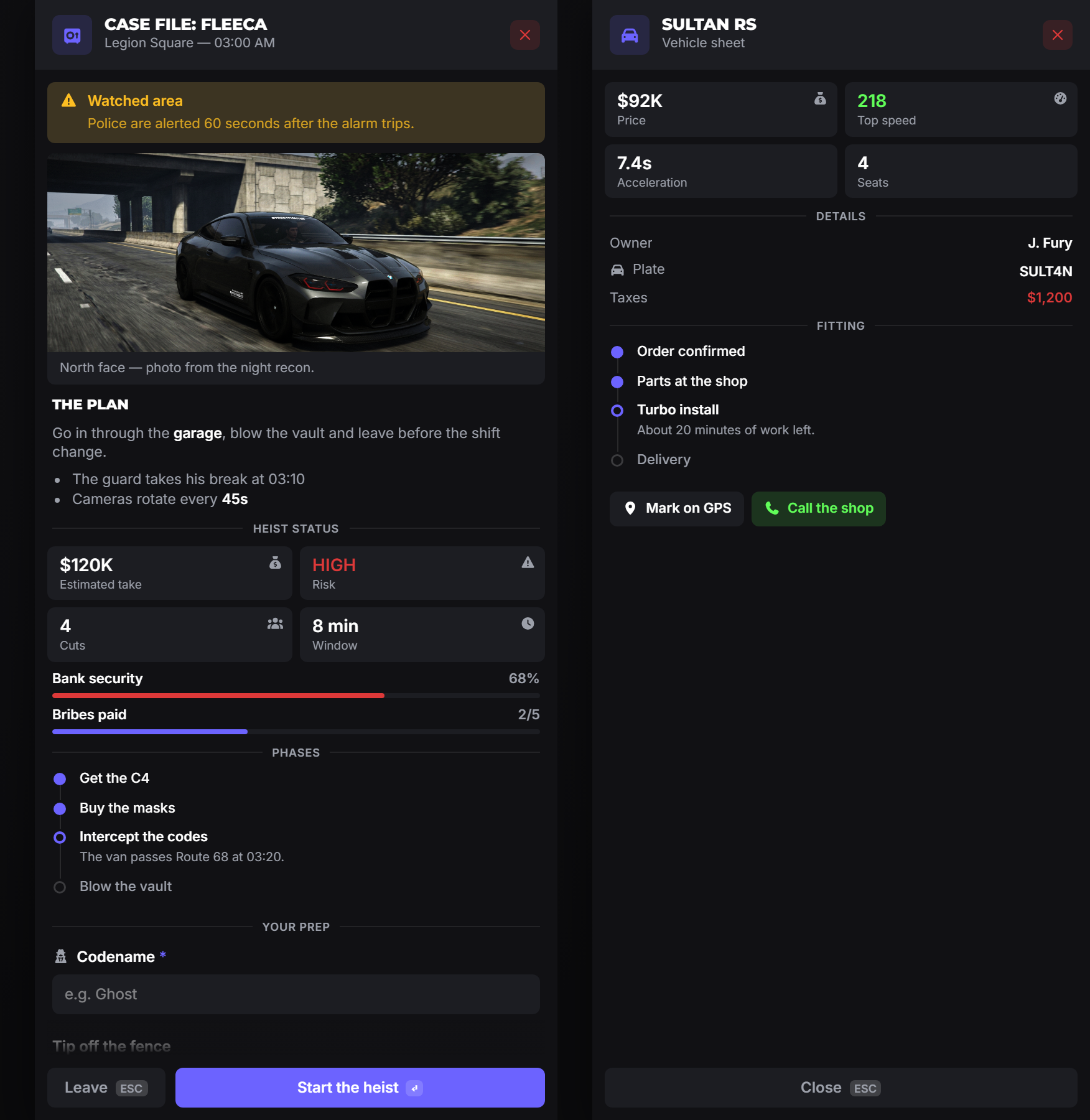

Two drawers side by side: a heist dossier with a callout, image, markdown, stats, progress bars, a timeline and form fields, and a vehicle sheet with stats, key/value rows, a timeline and action buttons

local values, byId = exports.of_ui:drawer(data)

Blocking by default: it waits for Confirm and returns the same pair as input: a positional values array and a byId table, or nil when the panel was closed without confirming. Call it from a thread.

With focus = false it returns immediately instead. See Passive panels.

Field	Type	Description
`title`	`string`	Header title.
`subtitle`	`string?`	Muted line under the title.
`icon`	`string\|table?`	Header icon.
`iconColor`	`string?`	Hex colour for the icon.
`rows`	`table[]`	The content. Same rows as the input dialog: see Rows. A bare string becomes a `markdown` row.
`side`	`string?`	`left` or `right`. Theme decides when omitted.
`width`	`number?`	Panel width in pixels. Theme decides when omitted.
`confirm`	`boolean?`	`false` hides the Confirm button, leaving an info panel with only Close.
`canClose`	`boolean?`	`false` removes the X, ESC and the overlay click.
`labels`	`table?`	`{ confirm?: string, close?: string }`: override the footer buttons.
`focus`	`boolean?`	`false` makes it a passive HUD panel. See below.
`onAction`	`function?`	Called with the `id` of a clicked `buttons` item.

CreateThread(function()
    local values, byId = exports.of_ui:drawer({
        title = 'Case file: Fleeca',
        subtitle = 'Legion Square, 03:00 AM',
        icon = 'vault',
        side = 'right',
        width = 420,
        labels = { confirm = 'Start the heist', close = 'Leave' },
        rows = {
            { type = 'callout', variant = 'warning', label = 'Watched area',
              description = 'Police are alerted 60 seconds after the alarm trips.' },
            { type = 'divider', label = 'Your prep' },
            { type = 'input', label = 'Codename', id = 'alias', required = true },
        },
    })

    if not values then return end -- closed without confirming
    print(byId.alias)
end)

closeDrawer

exports.of_ui:closeDrawer()

Closes the panel from code. A blocking drawer call returns nil; a passive one just disappears.

updateDrawer

exports.of_ui:updateDrawer(patch)

Patches the open panel in place. Anything the player has typed or selected survives the update.

Field	Type	Description
`title`	`string?`	New header title.
`subtitle`	`string?`	New subtitle.
`rows`	`table?`	Partial rows keyed by row `id`, merged over the matching row.

Only rows that declared an id can be patched, and rows cannot be added or removed, only changed.

Info panels

Drop confirm and you have a document rather than a form: the vehicle sheet on the right of the screenshot above:

exports.of_ui:drawer({
    title = 'Sultan RS',
    subtitle = 'Vehicle sheet',
    icon = 'car',
    confirm = false,
    rows = {
        { type = 'stats', items = {
            { label = 'Price', value = '$92K', icon = 'sack-dollar' },
            { label = 'Top speed', value = '218', icon = 'gauge-high', colorScheme = '#61fd59' },
        } },
        { type = 'divider', label = 'Details' },
        { type = 'keyvalue', items = {
            { label = 'Owner', value = 'J. Fury' },
            { label = 'Plate', value = 'SULT4N', icon = 'car' },
        } },
    },
})

Note this still blocks until the player closes it. That is usually what you want for a document. It lets you run cleanup on the line after.

Passive panels

focus = false turns the drawer into a HUD readout: no overlay, no footer, no X, no keyboard, and it never takes NUI focus, so the player keeps playing. The export returns immediately.

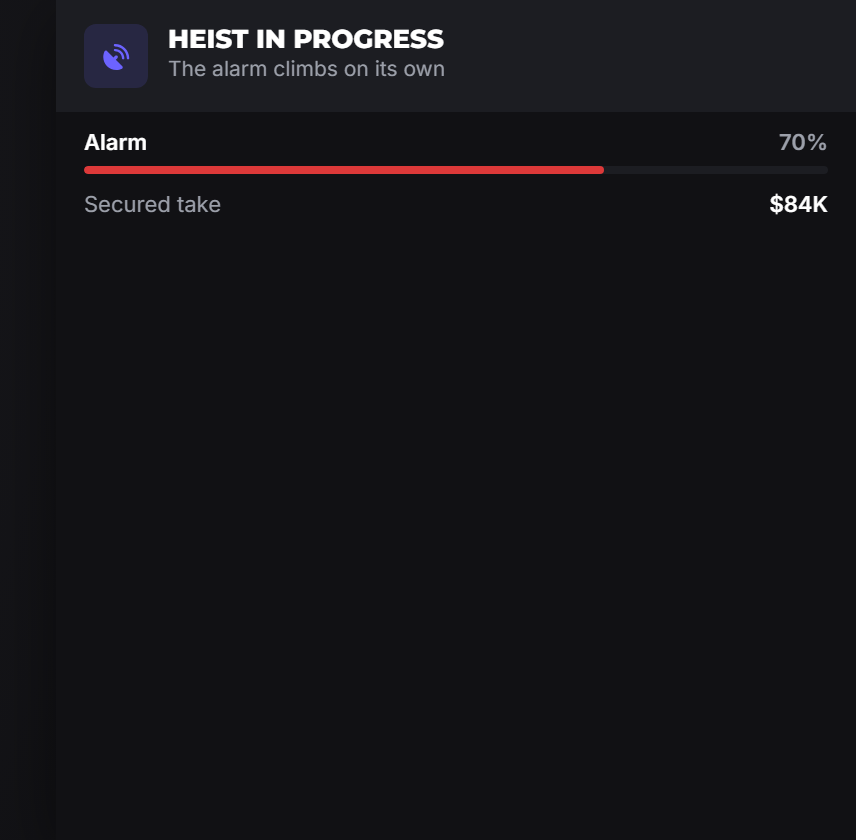

A narrow passive panel showing an alarm progress bar and a secured-take line

CreateThread(function()
    exports.of_ui:drawer({
        title = 'Heist in progress',
        subtitle = 'The alarm climbs on its own',
        icon = 'satellite-dish',
        focus = false,
        rows = {
            { type = 'progress', id = 'alarm', label = 'Alarm', value = '0%', progress = 0,
              colorScheme = '#dd3939' },
            { type = 'keyvalue', id = 'loot', items = { { label = 'Secured take', value = '$0' } } },
        },
    })

    for i = 1, 10 do
        Wait(600)
        exports.of_ui:updateDrawer({
            rows = {
                alarm = { progress = i * 10, value = (i * 10) .. '%' },
                loot  = { items = { { label = 'Secured take', value = '$' .. (i * 12) .. 'K' } } },
            },
        })
    end

    exports.of_ui:closeDrawer()
end)

warning

Use display rows only in a passive panel. There is no footer to submit with and no focus to type with, so editable fields have no way to be answered, and nothing on screen can close the panel. closeDrawer() is the only way out, so make sure your script always reaches it.

Buttons and actions

A buttons row gives the panel actions that do not close it. Each click calls onAction with that button's id:

exports.of_ui:drawer({
    title = 'Sultan RS',
    confirm = false,
    onAction = function(id)
        if id == 'gps' then
            SetNewWaypoint(...)
        elseif id == 'call' then
            TriggerServerEvent('shop:call')
        end
    end,
    rows = {
        { type = 'buttons', items = {
            { id = 'gps',  label = 'Mark on GPS', icon = 'location-dot' },
            { id = 'call', label = 'Call the shop', icon = 'phone', colorScheme = '#61fd59' },
        } },
    },
})

Pair onAction with updateDrawer to react in the panel itself:

onAction = function(id)
    if id == 'refresh' then
        exports.of_ui:updateDrawer({ rows = { status = { value = 'Updated', progress = 100 } } })
    end
end,

onAction runs in its own thread, so a slow handler never stalls the UI. Errors inside it are caught and printed rather than breaking the panel.

Notes

One blocking drawer at a time. A second drawer call while one is open returns nil instead of queuing. Passive panels are replaced by the next drawer call.
onAction stays in Lua. Functions cannot cross into the UI, which is why buttons report by id.
Long panels scroll. The header and footer stay put.
