Objectives

A mission timeline pinned to the screen edge. Completed steps are ticked and green, the current one is highlighted, later ones stay muted. Pure HUD. It never takes focus and never blocks.

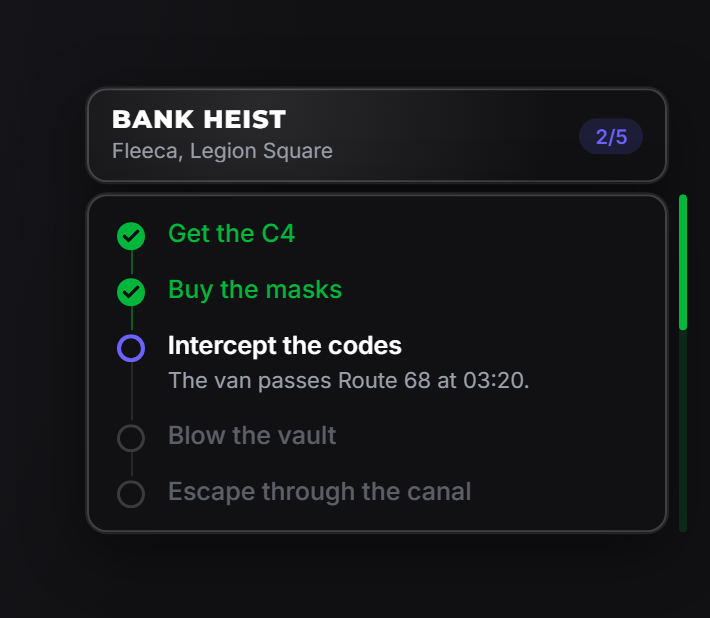

An objectives panel with a title, a 2/5 badge, two completed steps, the active step with its description, and two pending steps

One pointer drives every state: everything before it is done, the step at it is active, everything after is pending. Advancing a mission is moving the pointer: there is no per-step state to keep in sync.

showObjectives

exports.of_ui:showObjectives(data)

Field	Type	Description
`steps`	`table[]`	The steps. Required, and must not be empty. A bare string becomes a step with that label.
`title`	`string?`	Header title.
`subtitle`	`string?`	Muted line under the title. `description` is accepted as an alias.
`icon`	`string\|table?`	Header icon.
`current`	`number\|string?`	Starting step: a step `id` or a 1-based index. Defaults to the first.
`position`	`string?`	`left-center`, `right-center`, `top-left`, `top-right`. Theme decides when omitted.

Steps

Field	Type	Description
`label`	`string`	What the player has to do.
`id`	`string?`	Handle for `setObjective`. The 1-based index works too.
`description`	`string?`	Extra line, shown only while that step is active.

exports.of_ui:showObjectives({
    title = 'Bank heist',
    subtitle = 'Fleeca, Legion Square',
    steps = {
        { id = 'c4',     label = 'Get the C4' },
        { id = 'masks',  label = 'Buy the masks' },
        { id = 'codes',  label = 'Intercept the codes',
          description = 'The van passes Route 68 at 03:20.' },
        { id = 'vault',  label = 'Blow the vault' },
        { id = 'escape', label = 'Escape through the canal' },
    },
})

Shorthand when steps need nothing but a label:

exports.of_ui:showObjectives({
    title = 'Bank heist',
    steps = { 'Get the C4', 'Buy the masks', 'Blow the vault', 'Escape' },
})

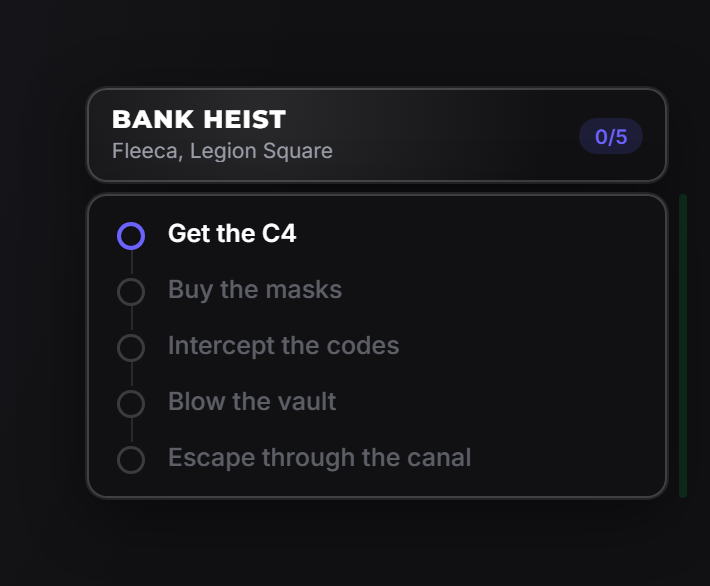

The same panel at its first step, nothing completed yet

advanceObjective

local allDone = exports.of_ui:advanceObjective()

Marks the current step done and activates the next one. Returns true once the pointer has moved past the last step, which is how you detect the mission finishing:

if exports.of_ui:advanceObjective() then
    exports.of_ui:notify({ type = 'success', title = 'Heist complete' })
    Wait(2000)
    exports.of_ui:hideObjectives()
end

setObjective

exports.of_ui:setObjective(ref)

Jumps the pointer to a step, by id or 1-based index. Everything before it becomes done. Use it when the mission is not strictly linear: a skipped step, a branch, a restored save.

exports.of_ui:setObjective('vault')  -- by id
exports.of_ui:setObjective(4)        -- by index

completeObjectives

exports.of_ui:completeObjectives()

Marks everything done at once. The badge turns green.

hideObjectives

exports.of_ui:hideObjectives()

Removes the panel.

objectivesState

local open, current = exports.of_ui:objectivesState()

Whether a set is showing, and which 1-based step is active. current equals #steps + 1 when everything is done.

Example

CreateThread(function()
    exports.of_ui:showObjectives({
        title = 'Bank heist',
        subtitle = 'Fleeca, Legion Square',
        steps = {
            { id = 'c4',     label = 'Get the C4' },
            { id = 'vault',  label = 'Blow the vault' },
            { id = 'escape', label = 'Escape through the canal' },
        },
    })
end)

RegisterNetEvent('heist:c4Acquired', function()
    exports.of_ui:advanceObjective()
end)

AddEventHandler('onResourceStop', function(resource)
    if resource == GetCurrentResourceName() then exports.of_ui:hideObjectives() end
end)

Notes

Nothing blocks. Every export returns immediately and the player keeps playing.
Only the active step shows its description: done is past, pending would spoil what is coming.
Always hide it on resource stop, or the panel outlives the mission.
For phases inside a panel rather than on the HUD, use the timeline row in a drawer.
